Construction Products Direct

Cable Ramp

Cable Ramp

Regular price £47.50 GBP
Regular price Sale price £47.50 GBP
Sale Sold out
Shipping calculated at checkout.

Cable Ramps allow free and easy movement of both pedestrians and lightweight plant and machinery whilst providing effective protection for cables on site.

Our Cable ramps are commonly used within construction, utilities, event and leisure industries. Made from a high-quality rubber base with a PVC lid which allows for an extensive life span of the ramp.

The cable ramps are available in standard colours of Black and Yellow to maximise visibility, reducing the trip hazard. Our Cable Ramps come with 4 individual securing points which allow you to secure the product to a hard-standing area, cables can then run through the ramp safely and secure to the ground without becoming a trip hazard.

With safety in mind, cable ramps are particularly ideal for events and festivals in addition to construction and utility industries, due to the high footfall in an environment which requires lots of electricity.

As well as the added security provided by the cable ramps, they also allow tidiness of an environment through the reduction of loose and stray wires on the ground which will be secured within the ramp.

Specifications and Key features:

  • Material: High quality rubber base with PVC lid
  • 4 individual securing point – if you need to secure to a hard standing area
  • Simple Male/Female Connection design for quick and effective installation
  • Standard Colours of black/yellow

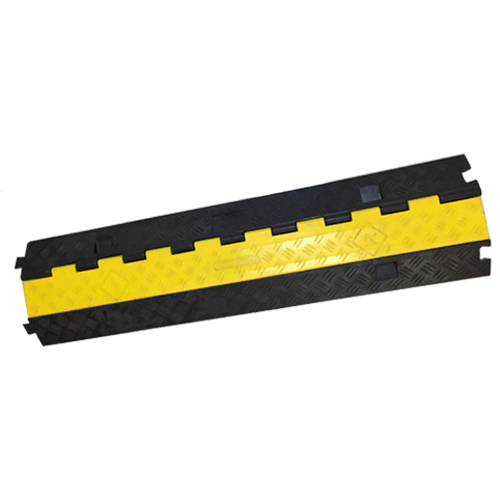

3 Channel Cable Ramp

  • Size: 990mm (L) x 300mm (W) x 45mm (H)
  • Weight: 8.5 kg
  • Max Axle Weight – 6 tonnes
  • Male and Female connection with yellow PVC flap
  • Internal channel dimensions of 35mm x 35mm

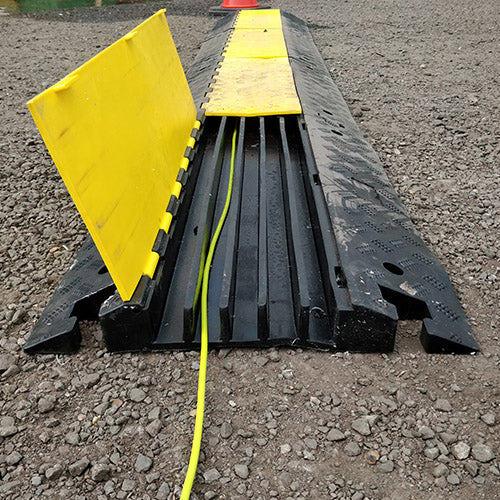

5 Channel Cable Ramp

  • Size: 890mm (L) x 590mm (W) x 75mm (H)
  • Weight: 19kg
  • Max Axle Weight: 12 tonnes
  • Male and Female connection with yellow PVC flap
  • Internal channel dimensions of 60mm x 40mm
